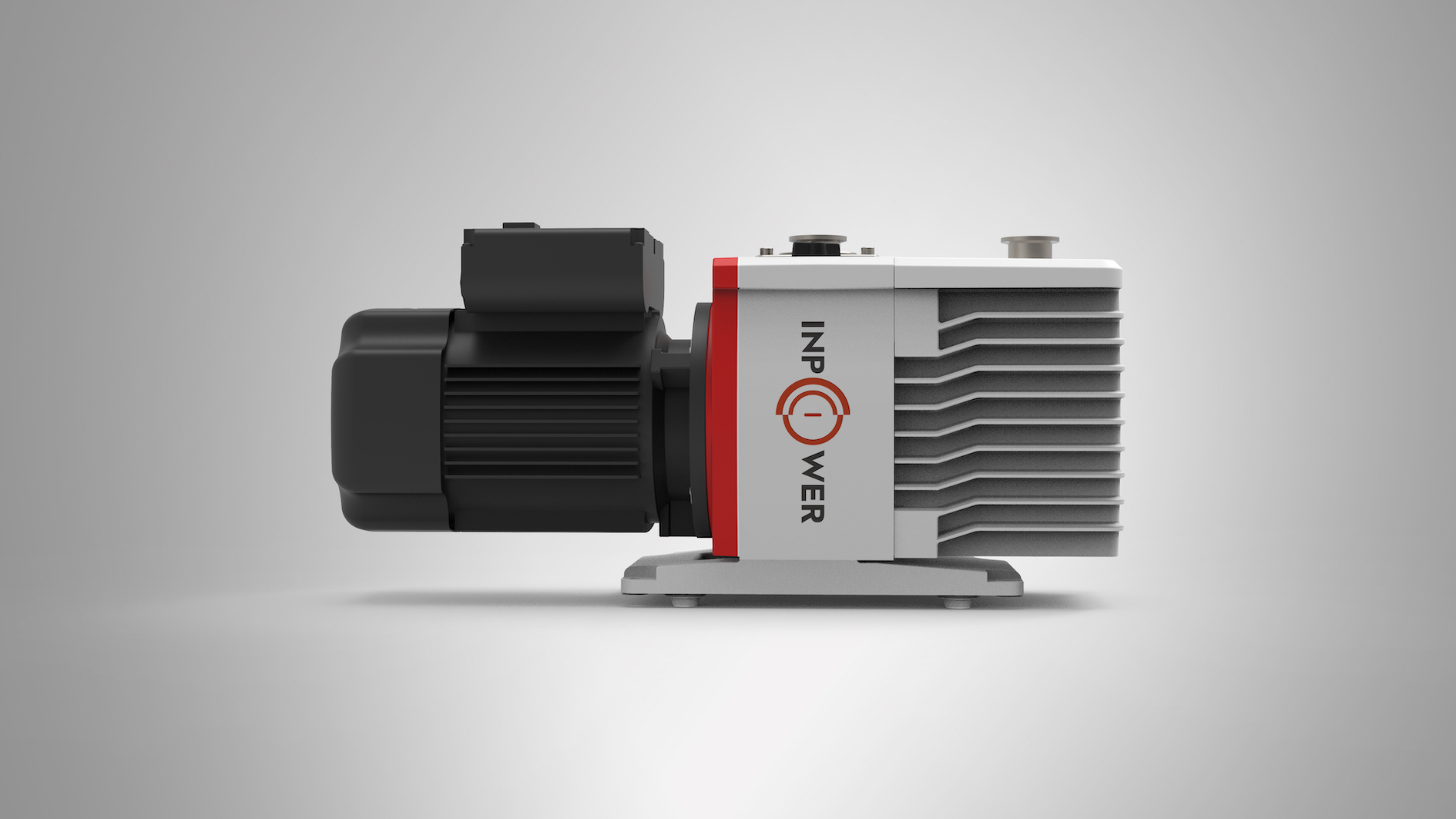

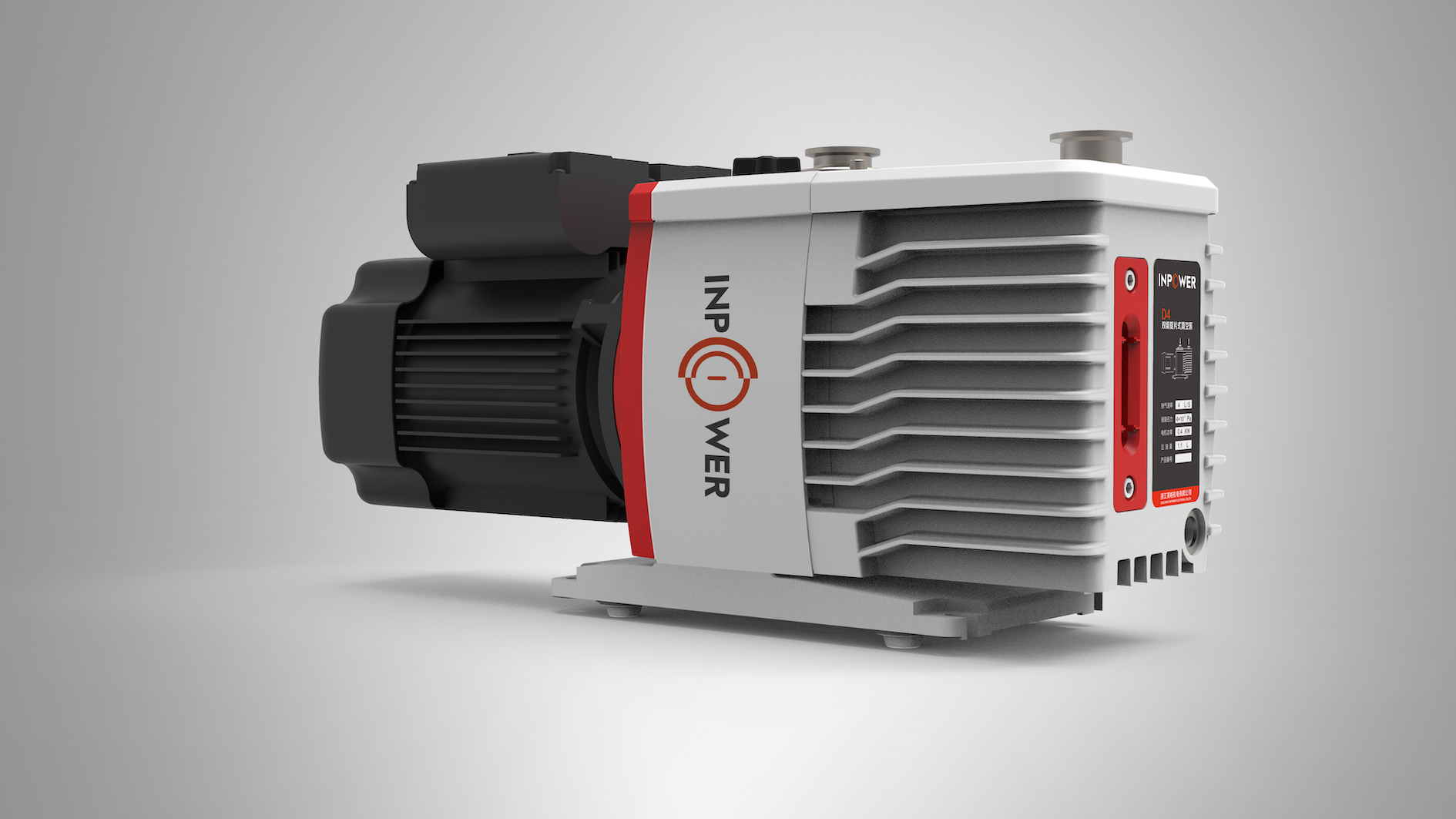

D-Series Two-stage Rotary Vane Pump

The inPower vacuum D series two-stage rotary vane pump, wide pumping speed design, stable and sturdy industrial application, bring high reliable use enjoyment and excellent vacuum limit effect.

Model: D2/4/6/9/14/18/25/275
Ultimate pressure: better than 0.04Pa
Rated pumping speed 50 Hz: 2-76 L/s
Rated pumping speed 60 Hz: 2.4-91 L/s

Accessories and spare parts
1. Oil mist filter: recovers oil mist, and can make the pump more low-noise. (Optional)
2. Vacuum pump oil: has been installed with the pump (replaced according to the time of use)

3. Clamps and interfaces, different interfaces are configured according to the connection needs of different devices, which makes it more convenient for you.

MODEL		D2	D4	D6	D9
Displacement	L/s	2	2	2	2
Ultimate Vacuum	Pa	0.04	0.04	0.04	0.04
Gas Ballast Open-I	Pa	0.1	0.1	0.1	0.1
Gas Ballast Open-II	Pa	3	3	3	3
Motor Power	Kw	0.55	0.55	0.75	0.75
Nominal Rotation Speed	rpm	1400	1400	1400	1400
Noise Level	dB	50	50	53	53
Inlet Flange	-	KF16	KF25	KF25	KF25/40
Exhaust Flange	-	KF16	KF25	KF25	KF25
Weight	kg	23	26	38	40
Oil Capacity	L	1.2	1.5	1.8	2.0
Cooling System	-	Air-cooled	Air-cooled	Air-cooled	Air-cooled
Operating temperature	℃	8～40	8～40	8～40	8～40
MODEL		D14	D18	D25	D275
Displacement	L/s	14	18	25	275(m³/h)
Ultimate Vacuum	Pa	0.04	0.04	0.04	0.04
Gas Ballast Open-I	Pa	0.1	0.1	0.1	0.1
Gas Ballast Open-II	Pa	3	3	3	3
Motor Power	Kw	0.55	0.55	0.75	0.75
Nominal Rotation Speed	rpm	1400	1400	1400	1400
Noise Level	dB	58	50	62	68
Inlet Flange	-	KF40	KF40	KF40	VG80
Exhaust Flange	-	KF40	KF40	KF40	VG80
Weight	kg	66	85	90	255
Oil Capacity	L	4	5	5.5	28
Cooling System	-	Air-cooled	Air-cooled	Air-cooled	Air-cooled
Operating temperature	℃	8～40	8～40	8～40	8～60

Specific environment and choice
Co-D version: When your use environment has mild corrosive gas, such as acidic, strong oxidizing and other environments, you can choose the Co-D version of the vacuum pump. By increasing the coating of the part of the pump body that contacts the pumped gas, The reliability of the pump body in the environment. (It is recommended to choose Impal S series oil-free screw vacuum pump for strong corrosive environment)

H2O-D version: H2O-D version vacuum pump can be selected in chemical experiments, freeze-drying, medical and other environments with more water vapor. Impulse can solve the condensation and retention of water vapor by increasing gas input and using specific vacuum pump oil. The reliability of the vacuum pump.

EP-D version: explosion-proof, used in flammable and explosive environments, and can be equipped with explosion-proof vacuum pump accessories and body to meet the vacuum requirements in explosion-proof environments.
